Hình ảnh của Blackmagic Cinema Camera

Blackmagic Cinema Camera

Cinematographers form a personal relationship with their camera for a creative partnership that can last years and span every location on the planet! Starting with a chassis machined from solid aluminum, capped with a smooth rubber front and rear for easy grip, plus a rear facing touchscreen for easy metadata entry, you get a stylish design that’s optimized for the whole post production workflow. Blackmagic Cinema Camera includes standard jack audio so there are no custom connectors!
Nhà sản xuất:: Blackmagic Cameras
:

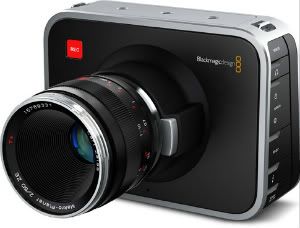

Elegant Design

Cinematographers form a personal relationship with their camera for a creative partnership that can last years and span every location on the planet! Starting with a chassis machined from solid aluminum, capped with a smooth rubber front and rear for easy grip, plus a rear facing touchscreen for easy metadata entry, you get a stylish design that’s optimized for the whole post production workflow. Blackmagic Cinema Camera includes standard jack audio so there are no custom connectors!

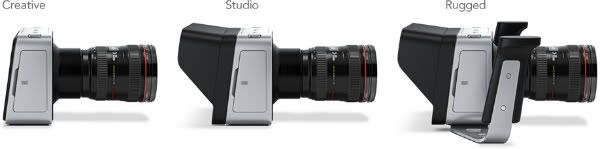

Incredibly versatile

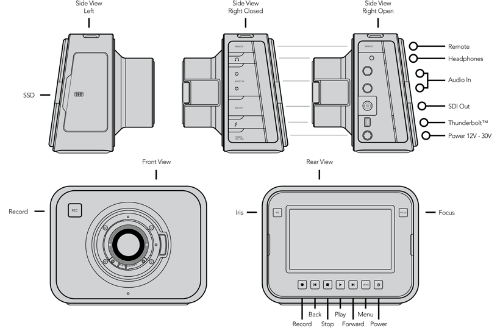

Use Standard Connectors

Say goodbye to annoying custom cables you can never find when on a location shoot because Blackmagic Cinema Camera uses only standard connections! You get jack mic/line audio inputs for recording the highest quality uncompressed audio, as well as 3 Gb/s SDI out for on set monitoring or for sending to live production switchers. Also included is 12V to 30V DC input for power and battery charging, 3.5mm headphone socket, LANC remote control and high speed Thunderbolt port for computer capture!

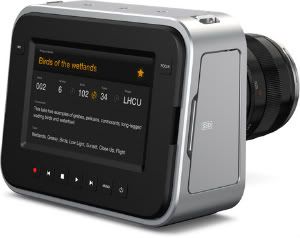

Capacitive Touchscreen Display

The 5″ touchscreen lets you see your shot, as well as play back from the SSD using the transport control buttons below the screen. Enter shot data and update the camera's settings using the capacitive touchscreen display, just like a smartphone! Double tap to zoom the image for fast and accurate focus. To keep you updated, the data strip displays information including record status, shutter angle, ISO, battery level, record time and more.

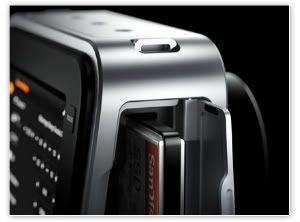

Built-in SSD Recorder

Blackmagic Cinema Camera includes a built-in SSD recorder that uses low cost 2.5" SSDs. You're not tied to proprietary media and SSDs of different sizes are widely available. You can play back directly from the Blackmagic Cinema Camera, mount the disk to any computer or use Blackmagic Design's HyperDeck Studio deck. Alternative camera media cannot match the performance of SSDs and require slow file copying to use. With Apple ProRes and Avid DNxHD video formats you can record for more than 5 hours on a single 480GB SSD!

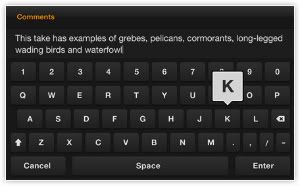

Enter Metadata Easily

The large capacitive touchscreen display makes it incredibly easy to log metadata directly into the camera. When you tap the display with a finger, a data entry window called the "slate" appears. This lets you enter shot information just like typing on a smartphone. This data is then stored in the files so can be accessed by NLE software when editing content later. Metadata is compatible with popular software such as Final Cut Pro X and DaVinci Resolve.

Open File Formats

Blackmagic Cinema Camera uses standard file formats, so you don’t need to wait years for your video software to support the media! Recording native 2.5K resolution uses the open CinemaDNG format, so you get full 12-bit RAW recording quality using the built-in SSD recorder, and the benefit of industry wide compatibility. For even greater compatibility you can also choose 1080HD recording into ProRes and DNxHD compressed video formats. Blackmagic Cinema Camera is the only camera to support purely open file formats!

Fast Metadata Entry

Logging file metadata directly into the camera dramatically speeds up the post production process. With the Blackmagic Cinema Camera 'slate' you can enter information such as shot number, search tags, scene number, timecode and more! You can even set shot number and other data to increment automatically! Metadata is compatible with leading editing software and is fully searchable so when you're editing your project you can avoid the time consuming task of searching for specific shots!

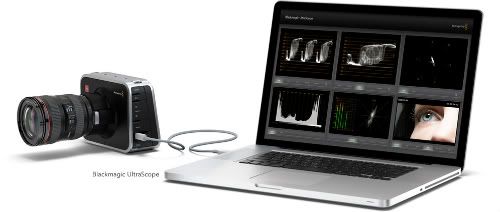

Includes UltraScope

Blackmagic UltraScope provides technically accurate waveform monitoring with a beautifully designed computer interface. Connect Blackmagic Cinema Camera to any computer using Thunderbolt technology to display 6 live scope views on a single monitor! Use UltraScope on set or in any location for Parade, Waveform, Vectorscope and Histogram signal measurement. UltraScope includes picture view, audio level and phase monitoring!

Includes DaVinci Resolve

Blackmagic Cinema Camera includes full DaVinci Resolve 9.0 software for Mac and Windows, so you get more color correction features that let you take advantage of Blackmagic Cinema Camera’s amazing image quality. Shoot wide dynamic range images and then make color correction decisions in post production. You will never be limited creatively by your equipment because you have the same camera and color correction technology used by the world’s leading cinematographers!
Learn more about DaVinci Resolve >

Blackmagic Cinema Camera Tech Specs

Blackmagic Cinema Camera

Camera Features

Active Sensor Resolution

2432 x 1366

Raw Resolution

12-bit RAW files recorded at 2432 x 1366

Shooting Resolutions

2.5K RAW at 2432 x 1366.
ProRes and DNxHD at 1920 x 1080

Frame Rates

23.98p, 24p, 25p, 29.97p, 30p

Active Sensor Size

15.81mm x 8.88mm

Dynamic Range

13 stops

Focus

Focus button turns on peaking

Iris Control

Iris button automatically adjusts the lens iris settings so no pixel is clipped

Lens Mount

EF and ZE mount compatible with electronic iris control

Screen Dimensions

5" and 800 x 480 resolution

Screen Type

Integrated LCD capacitive touchscreen

Metadata Support

Automatic camera data and user data such as shot number, filenames and keywords

Controls

Onscreen touch menus and physical buttons for recording and transport control

Microphone

Integrated mono microphone

Speaker

Integrated mono speaker

Mounting Options

3 x 1/4"-20 UNC thread mounting points on top of camera.
1 x 1/4"-20 UNC thread tripod mount with locator pin.

Power

Integrated Lithium-ion Polymer rechargeable battery.
12V-30V DC port for external battery power or use included 12V AC adapter.

Battery Life

Approximately 90 minutes

Battery Charge Time

Approximately 2 hours when not in use.

Camera Dimensions

166.2mm by 113.51mm x 126.49mm excluding detachable sunshade and turret dust cap

Camera Weight

1.7 kg / 3.75 lb

Storage Features

Storage Type

Removable 2.5” SSD

Storage Format

Mac OS Extended format. SSDs can be formatted on any Mac or use Mediafour MacDrive (not included) on a Windows PC.

Storage Rates

5 MB/frame in RAW 2.5K fits about 30 minutes of 24p video on a 256 GB solid state disk. Compressed HD formats fit more than 5 times the amount of RAW video.

Uncompressed Recording Formats

RAW 2.5K CinemaDNG

Compressed Recording Formats

Apple ProRes and Avid DNxHD. All compressed recording in 1920x1080 10-bit YUV with choice of Film or Video Dynamic Range.

Connections

SDI Video Output

1 x 10-bit HD-SDI 4:2:2 with choice of Film or Video Dynamic Range

Analog Audio Input

2 x 1/4” jacks for professional balanced analog audio, switchable between mic and line levels.

Analog Audio Output

1 x 3.5mm stereo headphone output

SDI Audio Output

4 channels in HD-SDI

Remote Control

1 x 2.5mm LANC for Rec Start/Stop, Iris Control and Focus Control

Computer Interface

Thunderbolt port for capture of RAW video and audio.
USB 2.0 mini B port for software updates and configuration.

External Power

12V-30V DC port for external battery power or use included 12V AC adapter.

Standards

SDI Compliance

SMPTE 292M.

SDI Audio Sampling

48 kHz and 24 bit.

Extras

Software Included

DaVinci Resolve grading software including Resolve USB dongle for Mac OS X and Windows.
Media Express software for video capture from the camera’s Thunderbolt port.
Blackmagic UltraScope software for waveform monitoring from the camera’s Thunderbolt port.

Accessories

Detachable sun shield, camera strap, turret dust cap and 12V AC adapter.

Product Warranty

12 Month Limited Manufacturer's Warranty.

Optional Accessories



Camera Handles

Blackmagic Cinema Camera Handles
